SMSL VMV D3R Flagship DAC & Preamplifier with Dual ROHM BD34302EKV, 10MHz OCXO & Bluetooth 5.4

Features

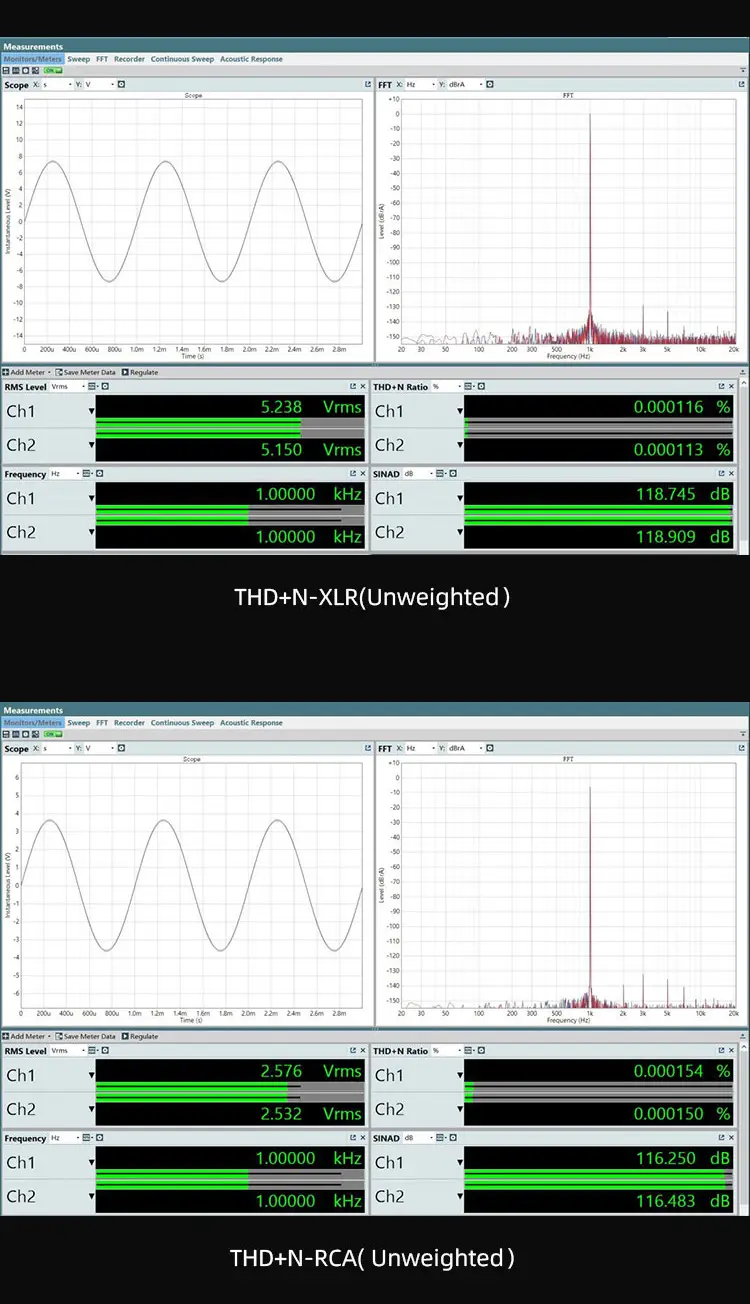

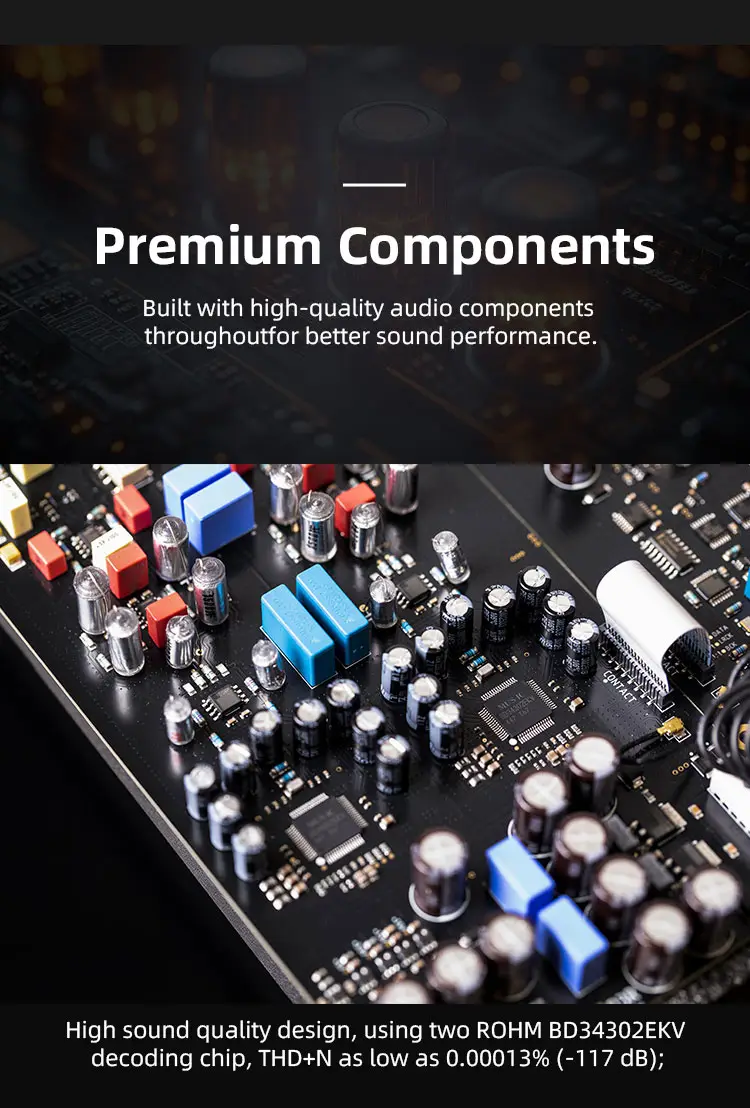

• Dual ROHM BD34302EKV DAC Chips – Equipped with two flagship ROHM BD34302EKV DAC chips for high-resolution digital-to-analog conversion, achieving THD+N as low as 0.00013% (-117dB).

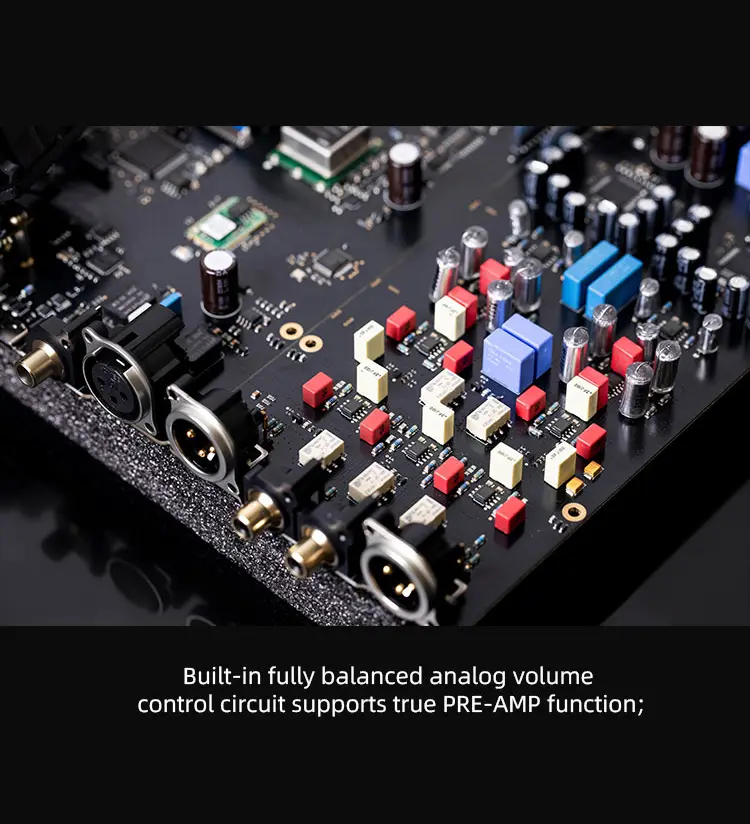

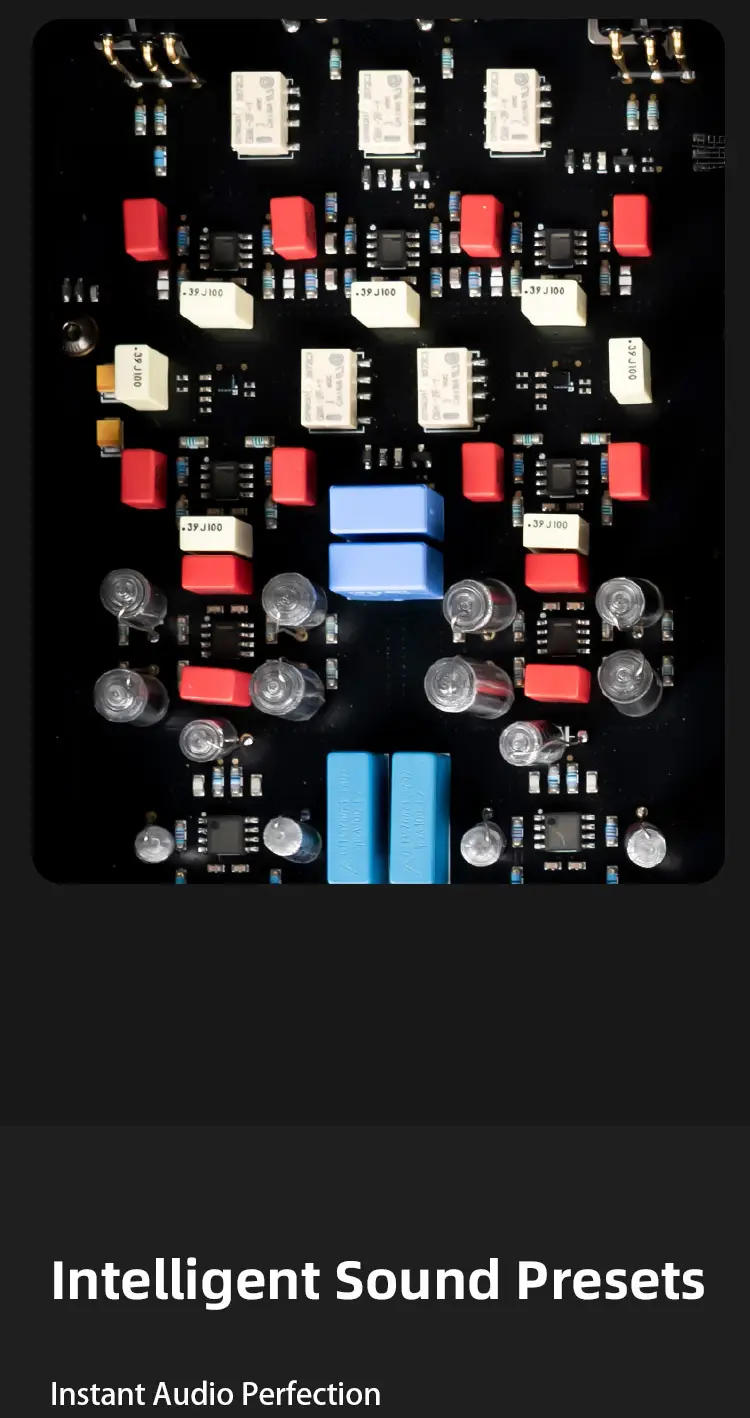

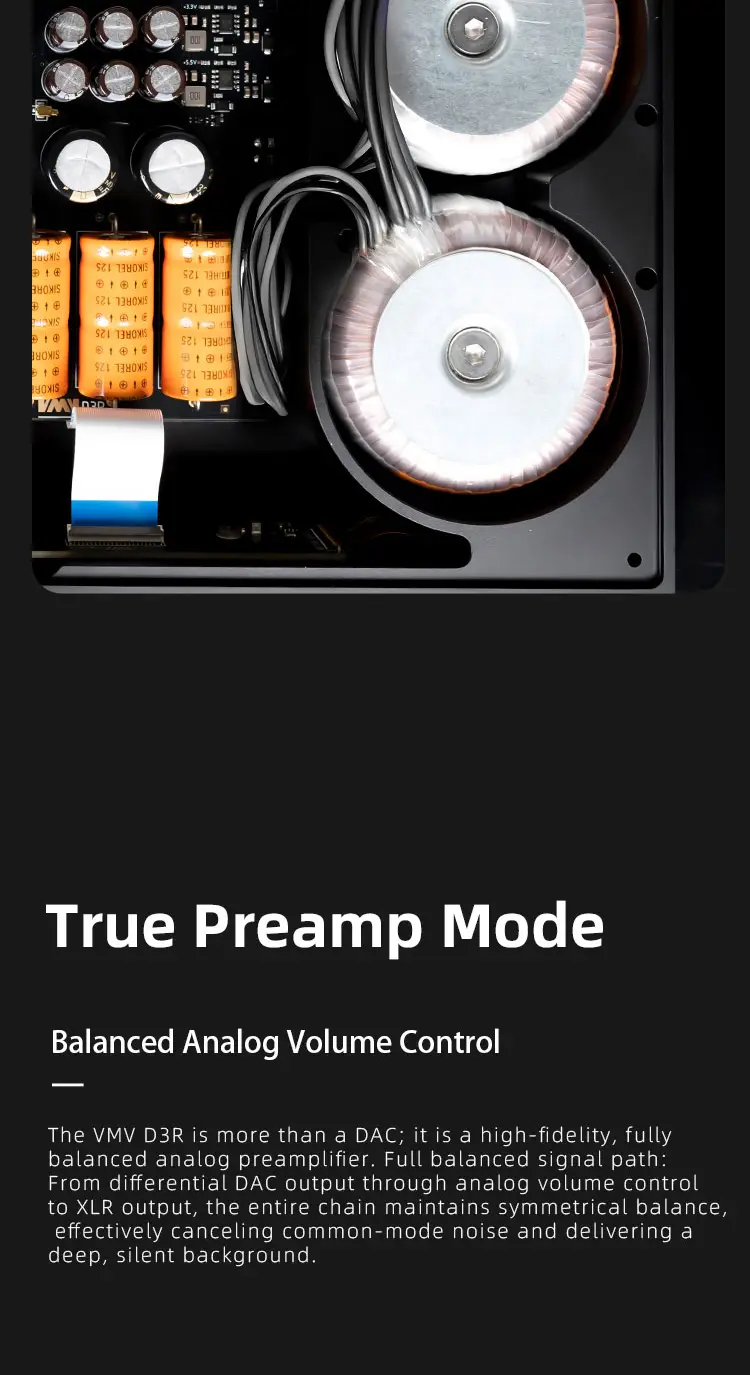

• Fully Balanced Analog Volume Control – The built-in fully balanced analog volume control circuit enables the VMV D3R to function as a true preamplifier, allowing direct connection to a power amplifier or active speakers.
• XMOS XU-316 USB Audio – The 32-bit XMOS XU-316 USB solution supports PCM up to 32-bit/768kHz and Native DSD512, providing high-bandwidth digital audio playback.
• Advanced Clock System – SMSL's self-developed CK-04 clock processing circuit reduces clock jitter, while the built-in ±3ppb 10MHz OCXO provides highly precise clock performance. External 10MHz clock and atomic clock inputs are also supported.
• MQA & MQA-CD Decoding – USB, optical, coaxial, and AES inputs support MQA decoding, including MQA-CD playback.

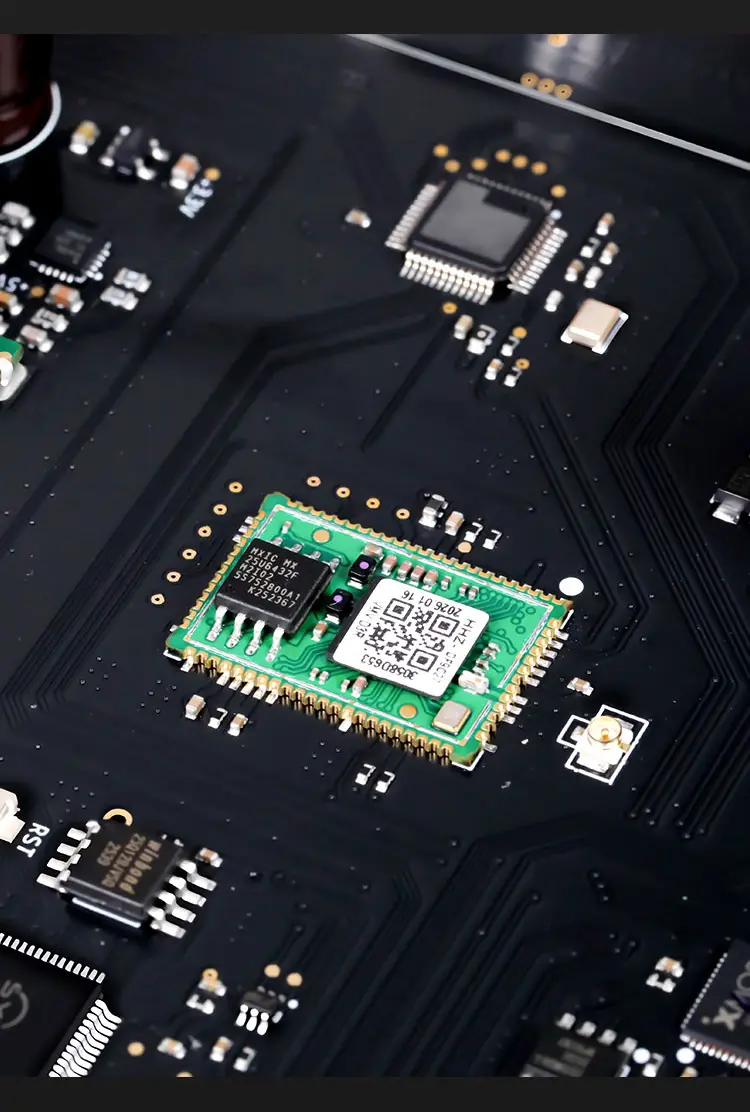

• Bluetooth 5.4 with LDAC – The latest Qualcomm Bluetooth platform supports LDAC, aptX HD, aptX, AAC, and SBC, with Bluetooth playback control, song information, and lyrics display.

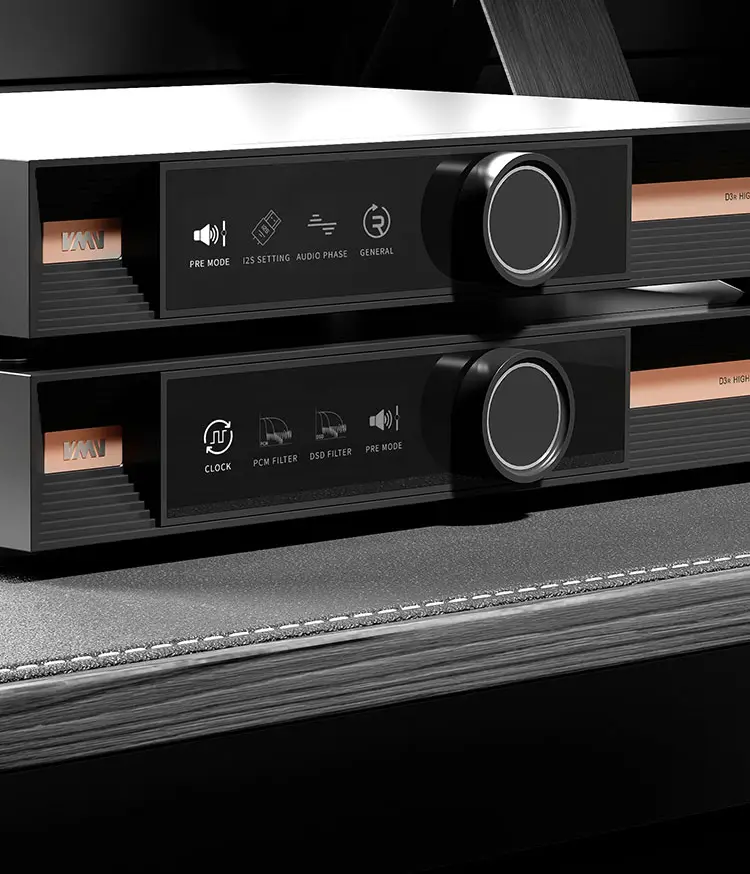

• Premium 3.49-inch Display – A 3.49-inch fully bonded tempered-glass display provides excellent visibility and durability. The redesigned user interface supports multiple languages for convenient operation.

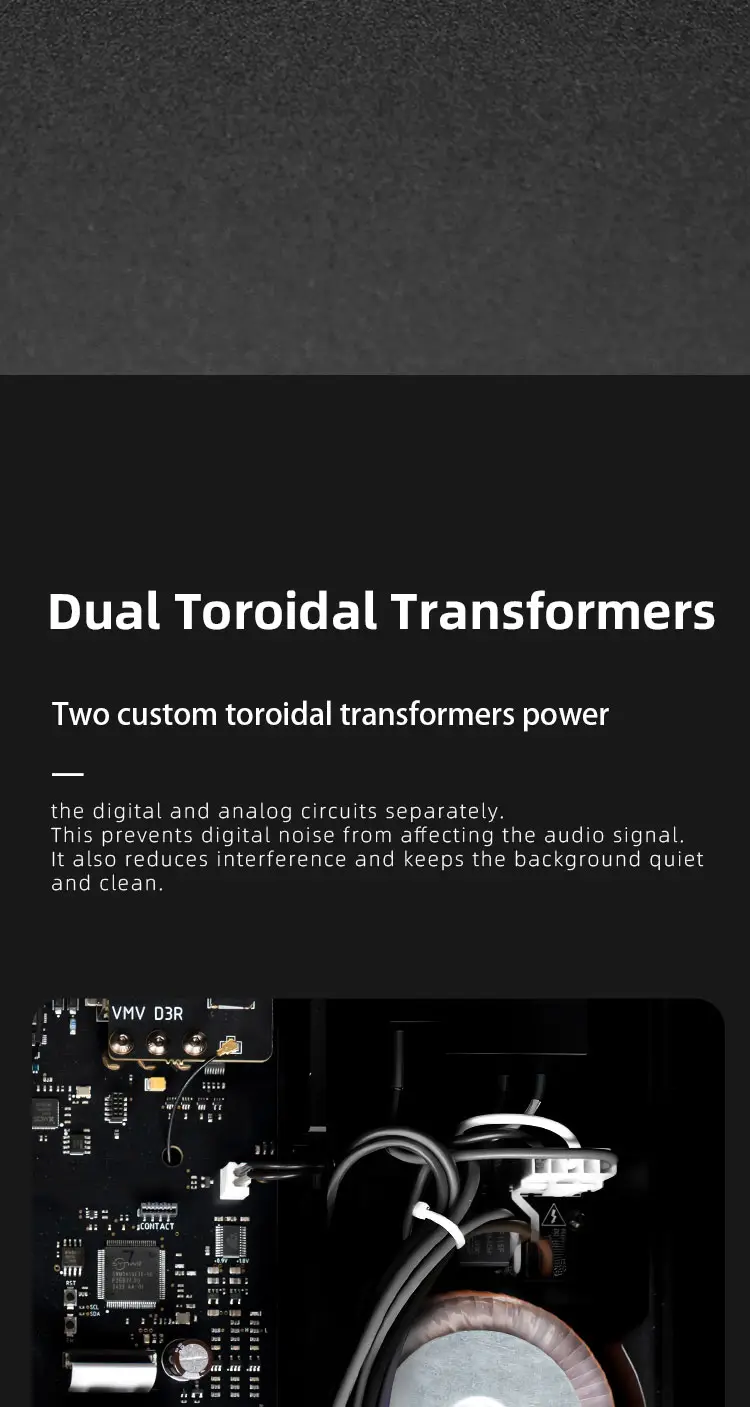

• Linear Power Supply – A linear power supply combined with multi-channel low-noise regulated power supplies provides clean and stable power, with dedicated low-noise power delivery for the analog circuitry.

Overview

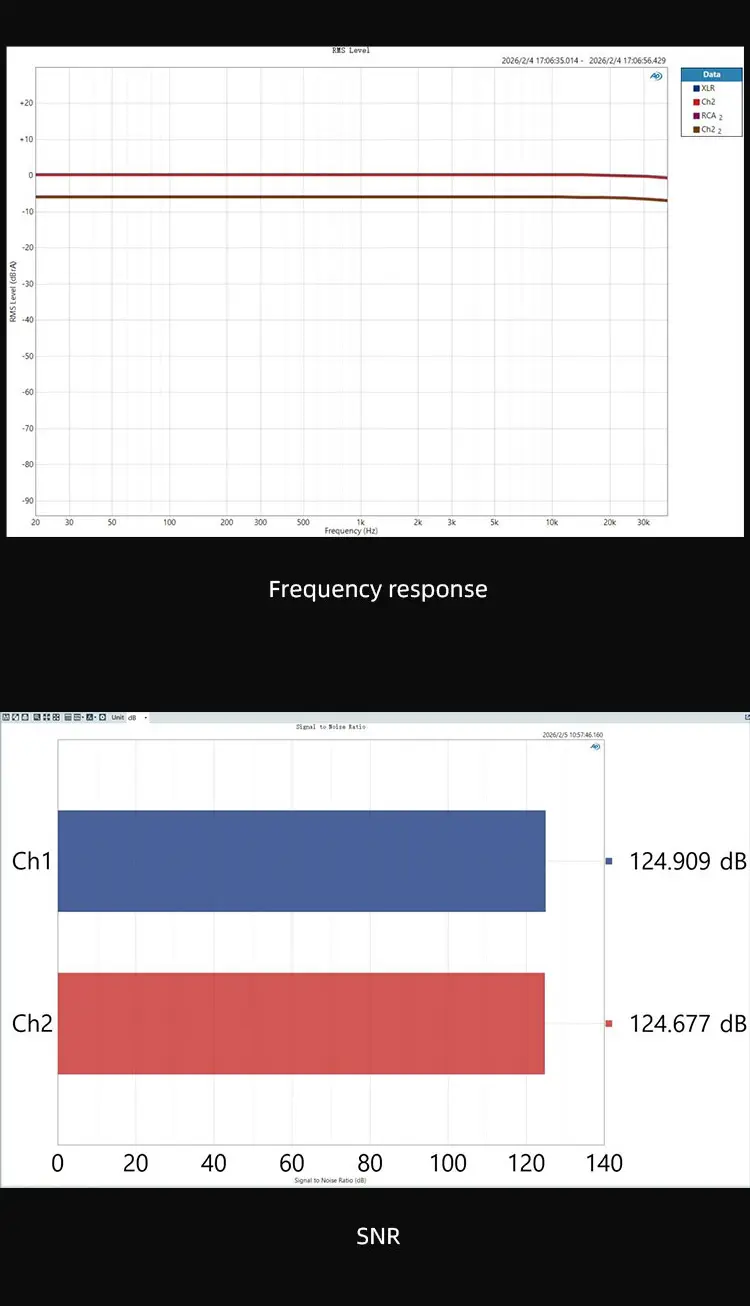

The SMSL VMV D3R is a new-generation flagship DAC and preamplifier designed for high-end Hi-Fi systems. Built around two ROHM BD34302EKV DAC chips, it combines a high-performance digital conversion stage with a fully balanced analog volume control circuit, allowing the D3R to function as a true preamplifier. With THD+N as low as 0.00013% (-117dB), it is engineered to deliver highly transparent and precise audio reproduction.

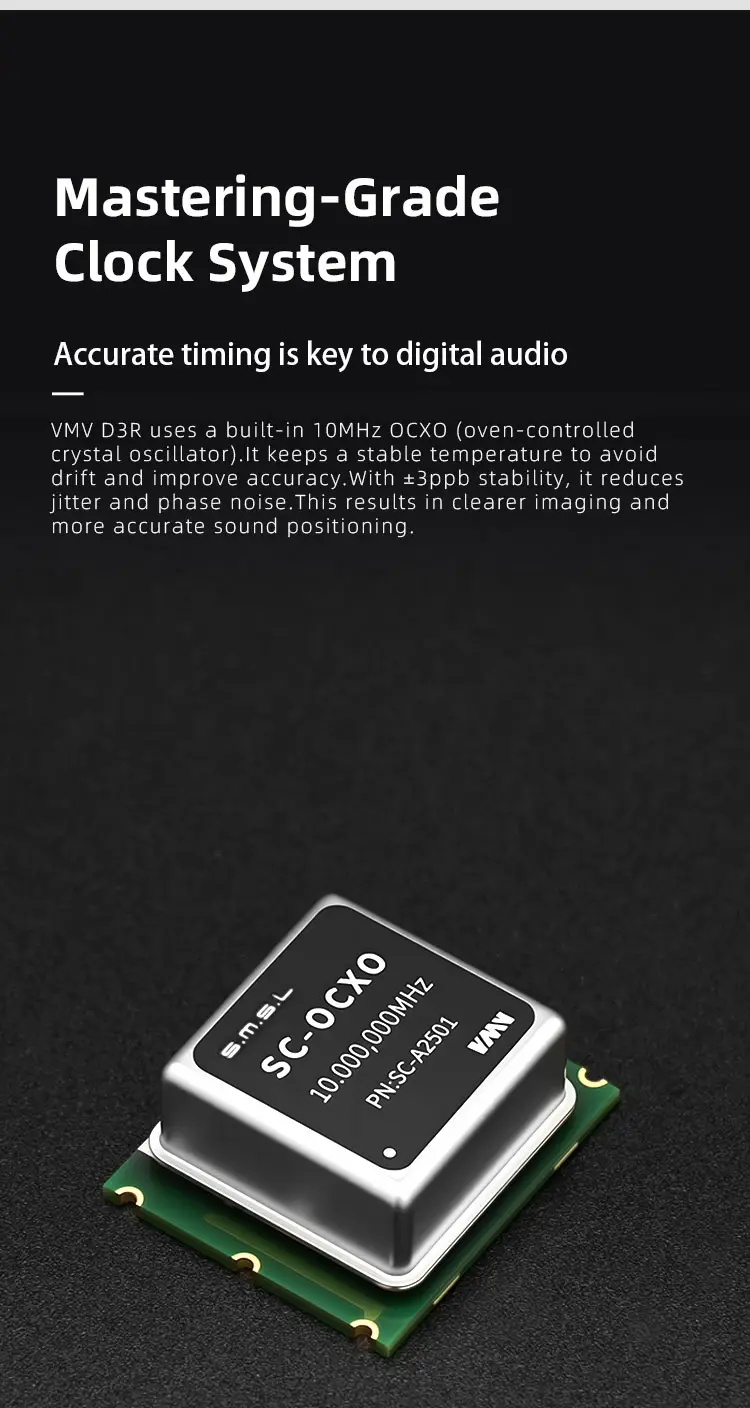

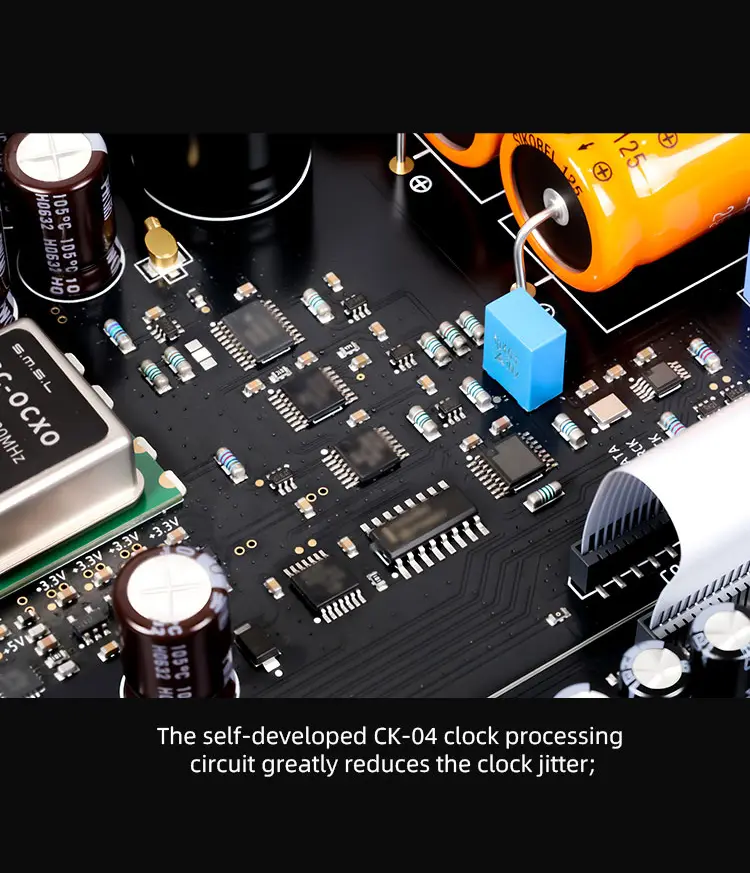

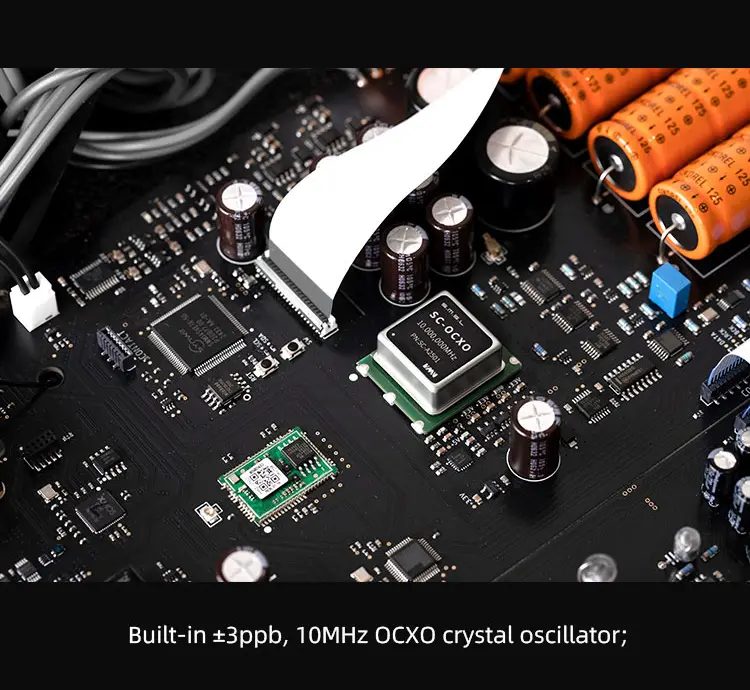

At the heart of the D3R is SMSL's self-developed CK-04 clock processing circuit, together with a built-in ±3ppb 10MHz OCXO crystal oscillator for exceptionally precise clock performance. The D3R also supports external 10MHz clock and atomic clock input, making it suitable for advanced audio systems that require precise clock synchronization.

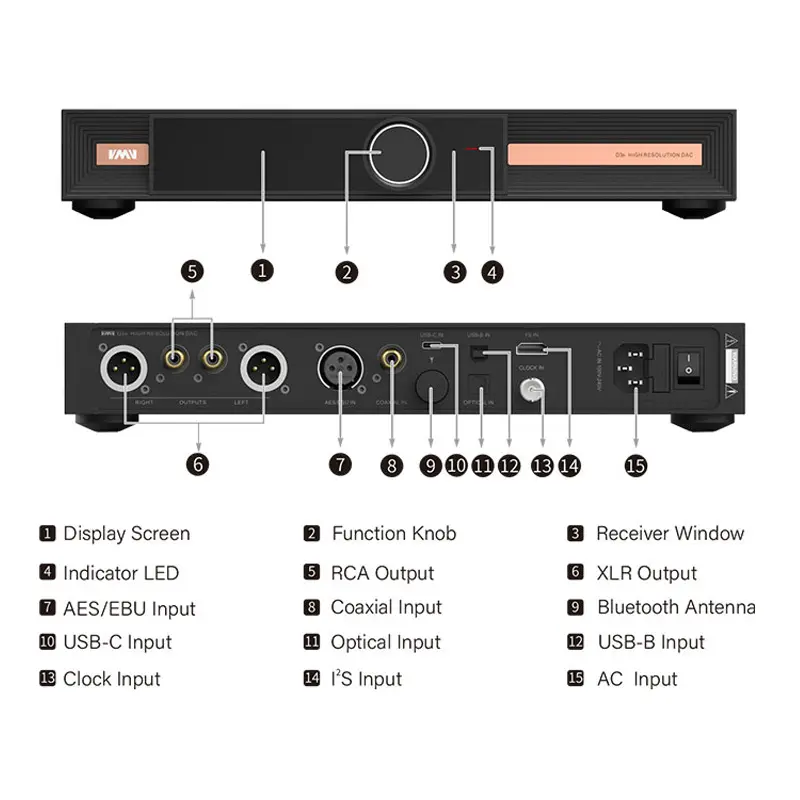

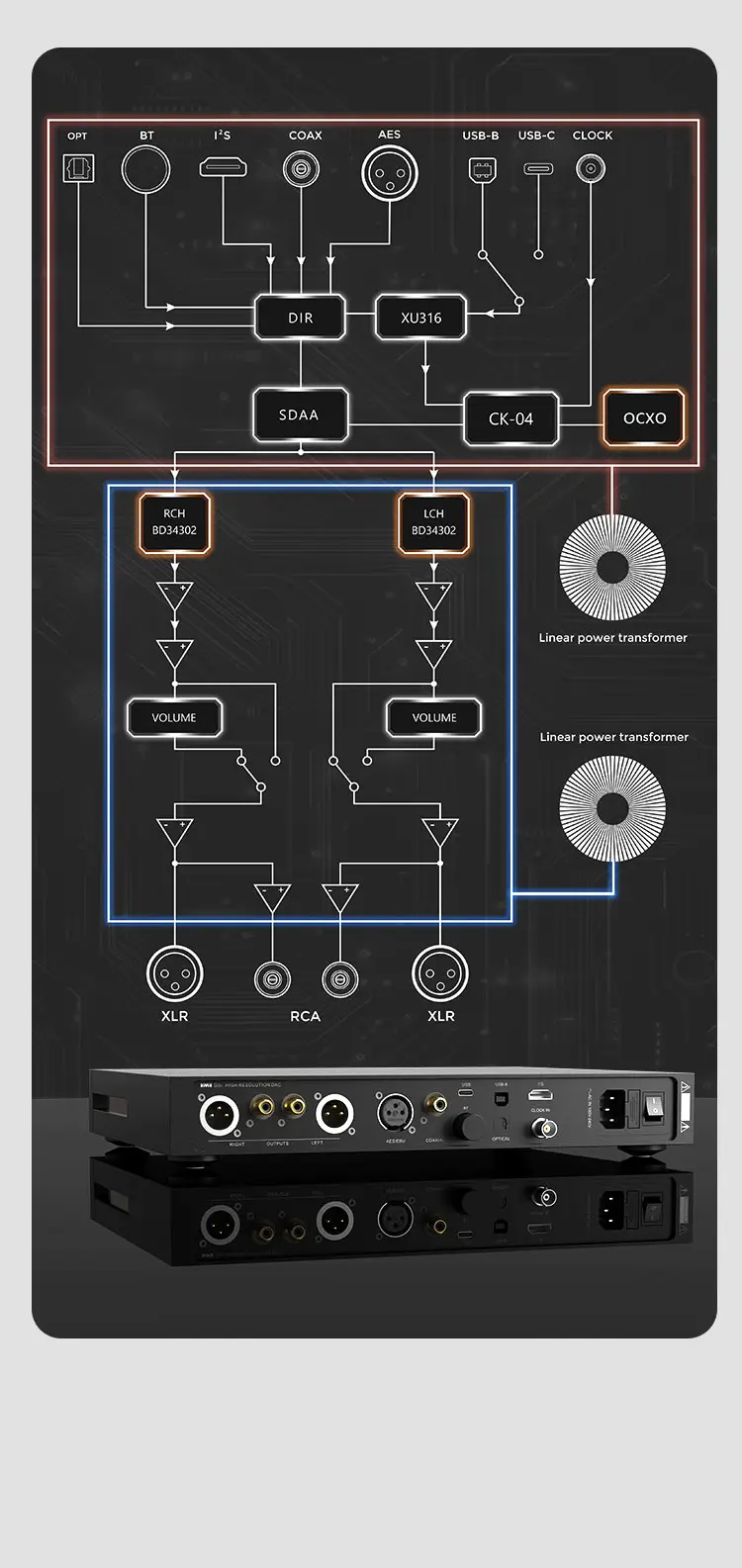

The D3R offers extensive connectivity through USB, I²S, AES/EBU, optical, coaxial, and Bluetooth inputs, with MQA decoding supported across multiple digital inputs. Its latest-generation Qualcomm Bluetooth platform supports LDAC, aptX, aptX HD, SBC, and AAC. A 3.49-inch fully bonded tempered-glass display, redesigned multi-language interface, linear power supply, and multi-channel low-noise regulation complete the D3R's premium design.
